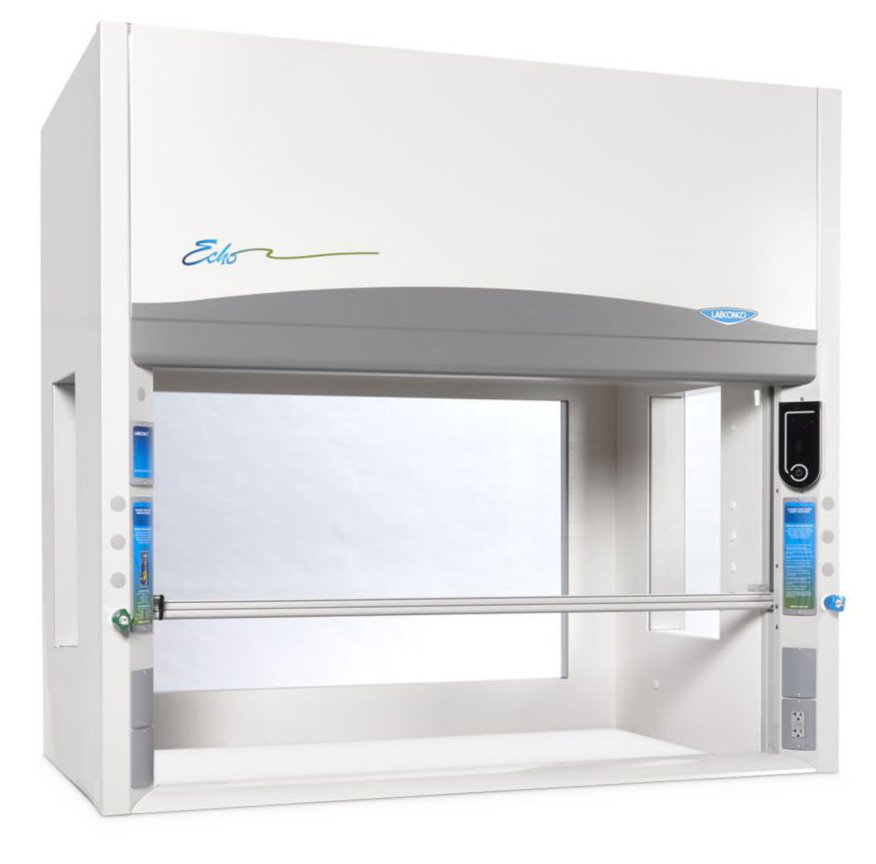

Ductless Fume Hoods

Ductless Fume Hood

GET A FUME HOOD QUOTE

Features (All Models)

Eco-Foil™ air foil with aerodynamic Clean-Sweep™ airflow openings
Cord-Keeper™ Slots on left and right side of air foil
Removable front and side panels, and front and interior service access panels (except side window models) for access to plumbing and electrical wiring
By-pass airflow design
Glacier white powder-coated steel exterior
Chemical-resistant, fiberglass-reinforced, composite panel liner
Pre-wired vapor-proof LED lights for up to 63 foot candles rated for 50,000 hours: 2 lights per 4' model, 3 lights per 5' model, 4 lights per 6' model, and 5 lights per 8' model
eGuard2 software communication
Smart control command module with wifi, Bluetooth and ethernet connectivity
Factory-installed command module, fan button and light button
Roughing prefilter: 2 each per 4' model, 3 each per 5' model, 4 each per 6' model, and 5 each per 8' model
Built-in exhaust fans: 2 each per 4' model, 3 each per 5' model, 4 each per 6' model, and 5 each per 8' model, to maintain 60 fpm face velocity at 16" sash opening height
Sound pressure of <60 dB(A) with sash at operating height and <48 dB(A) with sash closed
Sensor package for primary filter breakthrough of solvent and acid fumes, laboratory air quality, sash position, and temperature
Audible/visual alarms for breakthrough detection, temperature ≥40° C (104° F), fan failure and high sash position opening. At ≥60° C (140° F), all fans stop
Single piece, tempered safety glass vertical-rising sash with cable pulley, sash weight and powder-coated aluminum sash handle and tracks with airflow openings. Sash stop at 16" sash opening height. Sash opens to 28" high for loading
Factory-prepared for up to four electrical duplex receptacles and eight service fixtures
37.5" high sightline from the work surface and header panel
Power cord with plug

Window Models May Feature

Right and left side-mounted tempered safety glass windows, 15.0" deep x 26.5" high
Rear tempered safety glass window, 32.4" high

Fixtured Models May Feature

Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided
One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on the lower left side

Required Accessories (Not Included)

Neutrodine® Unisorb Filters (except HEPA only models which require HEPA filters). Number of filters required is determined by the width of the hood
Work Surface
Base Cabinet or Stand

Options Available Include

HEPA filter
Sash Opening Wing Reduction Kits
Region-specific electrical plug configurations
Service fixtures

Compliance

SEFA 9, DHIII
SEFA 8, Cabinet Surface Finish Tests
Modified ASHRAE 110
ANSI Z9.5-2011
AFNOR NF-X 15-211
ASTM E84-09C
UL Standard 61010-1
CAN/CSA C22.2 No. 61010-1

Choose a ductless fume hood that delivers effective chemical filtration and personnel protection without the cost and complexity of external ductwork. Designed for flexibility and convenience, ductless fume hoods help create a safer working environment by capturing and filtering hazardous fumes, vapors, particulates, and odors directly at the source before air is returned to the room.

Available with activated carbon filtration, HEPA filtration, or combination filter systems, these hoods can be configured to support a wide range of laboratory and technical applications. Filter options are available for solvents, acids, formaldehyde, powders, particulates, and mixed-use chemical processes, allowing users to select a filtration solution tailored to their specific requirements.

Ductless fume hoods are ideal for laboratories, research facilities, educational institutions, healthcare environments, and industrial workspaces where conventional ducted exhaust systems may be impractical or cost-prohibitive. Their self-contained design simplifies installation, reduces facility modification requirements, and allows greater flexibility when designing or reconfiguring workspaces.

Whether your application involves routine chemical handling, sample preparation, quality control testing, or specialized analytical procedures, Teclab offers ductless fume hood configurations to match your process, chemical load, and workspace requirements. Explore the available models to find the combination of filtration performance, workspace size, and operational features that best supports your laboratory's safety and productivity goals.
