Laboratory Fume Hoods for use with Remote Blower

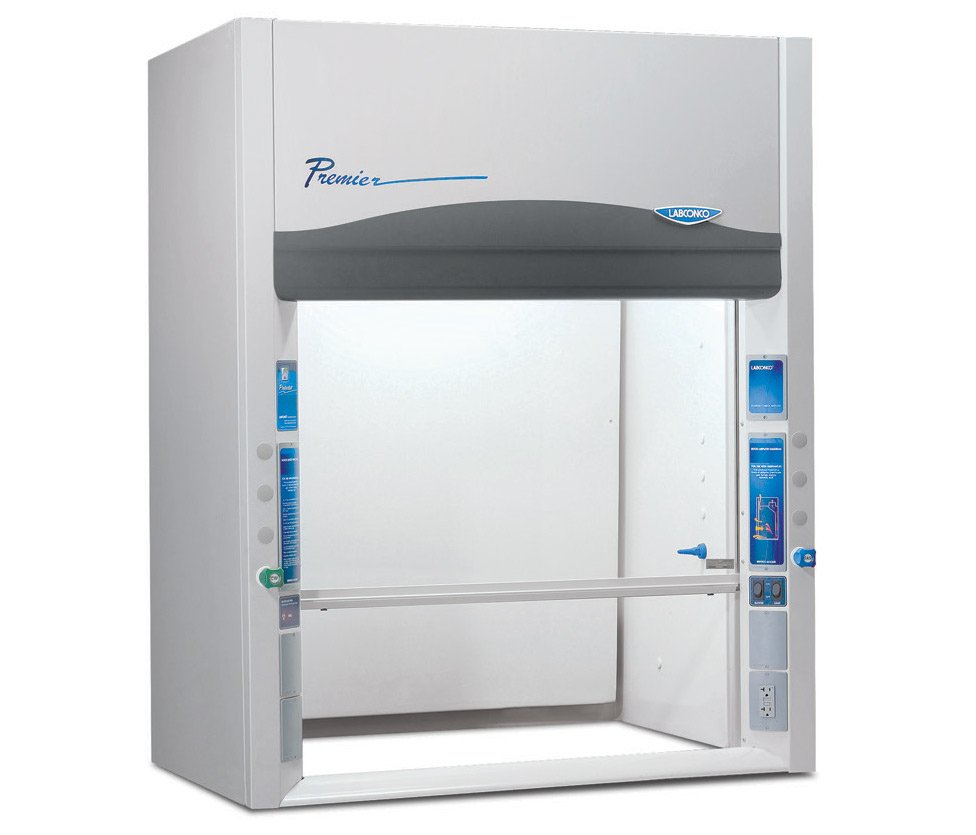

Remote Blower Fume Hoods

All models feature:

  • Molded Epoxy-resin Work-surface*
  • By-pass airflow design
  • Aerodynamic airflow openings
  • Cord-holder slots on left and right side of air foil
  • White powder-coated steel exterior
  • One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E84
  • Tempered safety glass vertical-rising sash and cable and pulley
  • Powder-coated aluminum sash handle
  • 37.5" (95.3 cm) high sightline from the work surface to header panel
  • Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
  • Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting is rated for 50,000 hours
  • Molded fiberglass 12.8" ID exhaust connection(s)

*Our standard fume hoods include the required work-surface. Custom sized fume hoods and specialized fume hoods will require a custom work-surface tailored to suit the environment.

Fixtured models feature:

  • Two service fixtures with forged brass valves, one for lower right side with brass tubing for gas and one for lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided.
  • One pre-wired 115 volt, 20 amp electrical duplex receptacle for lower right side (115 volt models).

All models conform to the following regulations and standards:

  • ADA
  • CFR 29, Part 1910
  • SEFA 1
  • NFPA45
  • ASTM E84-09C
  • ASHRAE 110
  • ANSI Z9.5
  • UL 61010-1
  • CAN/CSA C22.2 No. 61010-1
  • UL 1805
  • CE Conformity Marking (230 volt models)
  • SEFA 8
  • WARNING: Cancer - P65Warnings.ca.gov (California only)

All models require (not included):

  • Remote Blower.
  • Ductwork.
  • Base Cabinet or Stand.

Optional accessories for on-site installation include:

  • Service Fixture Kits
  • Electrical Duplex Kits
  • Airflow Monitor Kits.
  • Ceiling Enclosure and Rear Finish Panel Kits.
  • Distillation Grid Kits.
  • Sash Stop Kits.
Total Exhaust CFM and Static Pressure @ 28" Sash Opening (100% Open)
Face Velocity (fpm) Airflow Volumetric Rate (CFM) @ Static Pressure (inches of water)
Sash @ Full Open 4' Hood 5' Hood 6' Hood 8' Hood
CFM s.p. CFM s.p. CFM s.p. CFM s.p.
100 725 0.22 955 0.31 1180 0.41 1640 0.28
80 580 0.14 765 0.20 945 0.26 1310 0.18
60 435 0.08 575 0.11 710 0.15 985 0.10



Total Exhaust CFM and Static Pressure @ 18" Sash Opening (62.5% Open)
Face Velocity (fpm) Airflow Volumetric Rate (CFM) @ Static Pressure (inches of water)
Sash @ 62.5% Open 4' Hood 5' Hood 6' Hood 8' Hood
CFM s.p. CFM s.p. CFM s.p. CFM s.p.
100 450 0.09 595 0.12 735 0.16 1025 0.11
80 365 0.06 480 0.08 590 0.10 820 0.07
60 270 0.03 360 0.04 440 0.06 615 0.04



Heights of switches, electrical receptacle and service fixtures meet requirements of ADA when work surface is set to ADA height.

Ordering Information

Laboratory Hoods for use with remote blower

Nominal Width
Catalog Number
Electrical Requirements
12.81" ID Exhaust Collar(s)
Sash
LED Lighting
Service Fixtures
Electrical Duplex
Shipping Weight lbs./kg
4 Feet
FH-48-EPLBSCSTGA
115 volts, 60 Hz
1
1
Yes
2
1
335/152
5 Feet
FH-60-EPLBSCSTGA
115 volts, 60 Hz
1
1
Yes
2
1
420/191
6 Feet
FH-72-EPLBSCSTGA
115 volts, 60 Hz
1
1
Yes
2
1
495/225
8 Feet

FH-96-EPLBSCSTGA



115 volts, 60 Hz

2
2
Yes
2
1
660/299
Options for European voltage and explosion-proof hoods are available.

Dimensional Data

8' Laboratory Hoods for use with remote blower


A
B
C
4' Hood 48"
(121.9cm)
38.1"
(96.8 cm)
24"
(61.0 cm)
5' Hood 60"
(152.4 cm)
50.1"
(127.3 cm)
30"
(76.2 cm)
6' Hood 72"
(182.9 cm)
62.1"
(157.7 cm)
36"
(91.4 cm)
8' Hood 96"
(243.8 cm)
86.1"
(218.7 cm)
Hood Dimensions

Fume Hood Work-Surface

Molded Epoxy-resin Work-surface

  • Molded from a special formulation of corrosion-resistant epoxy resins
  • Dished and contoured to conform to the interior liners of Hoods
  • Front edge has a large radius to aerodynamically direct airflow into the hood
  • Pre-drilled 1.5" (5.8 cm) diameter holes for venting and 2.5" (6.4 cm) diameter holes for plumbing pass-through
  • May be ordered with a 6.0" x 3.0" (15.2 x 7.6 cm) oval cupsink cutout. Cupsink sold separately.
