Laboratory Fume Hoods with Built-in Blower

Built-in Blower Fume Hood

All models feature:

  • Built-in belt-driven, corrosion-resistant exhaust blower with adjustable sheave, molded thermoplastic housing and non-sparking, coated aluminum impeller.
  • By-pass airflow design.
  • **Ergonomic air foil with aerodynamic Clean-Sweep*airflow openings.
  • Glacier white, dry powder epoxy-coated steel exterior.
  • One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E-84.
  • **3/16" thick tempered safety glass vertical-rising sash with epoxy-coated sash handle. Sash does not extend above the hood when fully open.
  • **Removable front and side panels and front access panels for access to plumbing and electrical wiring.
  • 10.81" ID exhaust connection (4' models); 12.81" ID exhaust connection (5' and 6' models).

Fixtured models feature:

  • Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided.
  • One pre-wired 115 volt, 20 amp electrical duplex receptacle on lower right side (115 volt models).

All models conform to the following regulations and standards:

  • SEFA 1-2005
  • NFPA45-2004
  • ASTM E84-01
  • ASHRAE110-95
  • ANSI Z9.5-2003
  • UL 3101-1/61010-1
  • CAN/CSA C22.2 No. 1010.1
  • UL 1805
  • CE Conformity Marking (230 volt models)

All models require (not included):

  • Ductwork.
  • Work Surface.
  • Base Cabinet or Stand.

Standard models feature:

  • Pre-wired T8 fluorescent lighting, light and blower switches.

Optional accessories for on-site installation include:

  • Service Fixture Kits
  • Electrical Duplex Kits
  • Guardian Jr. and Digital Airflow Monitor Kits.
  • Ceiling Enclosure and Rear Finish Panel Kits.
  • Distillation Grid Kits.
  • Auxiliary-Air Kits.
  • Sash Stop Kits.

Explosion-proof models feature:

  • Explosion-proof blower and incandescent light fixture (bulb not included).
  • Furnished without switches, electrical receptacle and wiring as these must conform to varying local codes.



Built-In Blower Maximum External Static Pressure @100 fpm
Hood Width
CFM
S.P.
Nominal Ductwork Diameter
Equivalent Resistance††
4 Feet
5 Feet
6 Feet
730
960
1180
.17"
.12"
.17"
10"
12"
10"
75
75
70

* U.S. Patent No. 6,461,233
** Exclusive Feature
pending
†† Equivalent resistance in feet of straight duct

Heights of switches, electrical receptacle and service fixtures meet requirements of ADA.

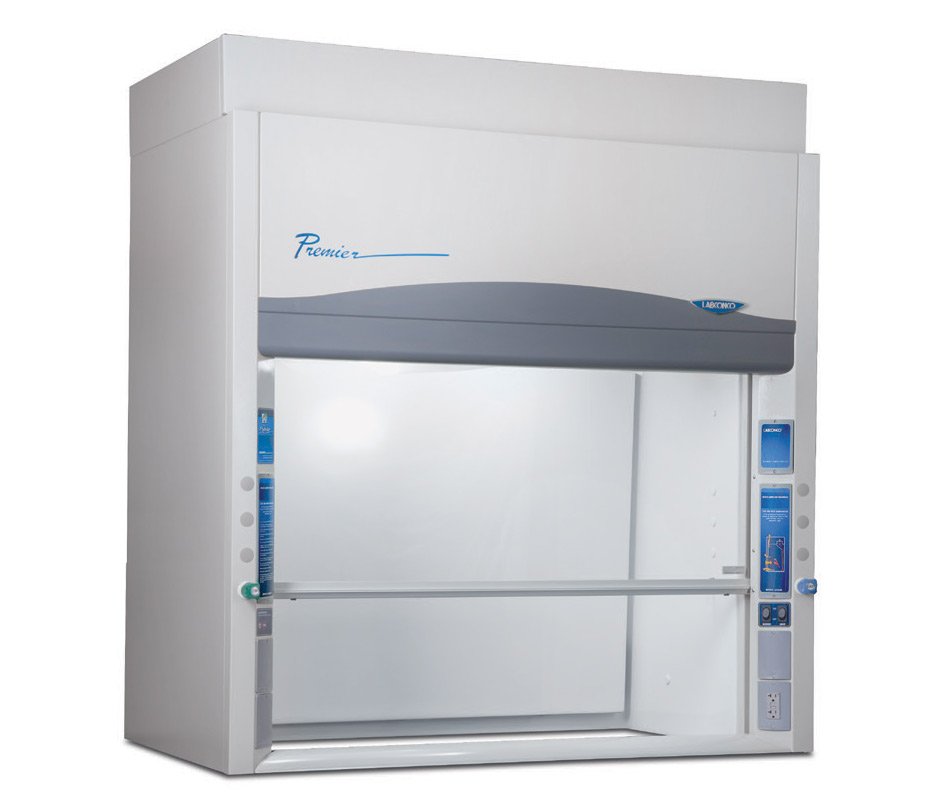

4' Built-in Blower Fume Hood6' Built-in Blower Fume Hood

5' Remote Blower Fume Hood

Side View Built-in Blower Fume Hood

Ordering Information

Laboratory Hoods with built-in blower

Nominal Width
Catalog Number
Built-in Blower
Electrical Requirements
Exhaust Collar (ID)
EP Incandescent Light Fixture*
Flourescent Lamps
Service Fixtures
Electrical Duplex
Shipping Weight lbs./kg
4 Feet




4880000
4880200
4880300
4871300**
4871400**
1/3 HP, Std.
1/3 HP, EP
1/3 HP, Std.
1/2 HP, Std.
1/2 HP, Std.
115 volts, 60 Hz
115 volts, 60 Hz
115 volts, 60 Hz
230 volts, 50 Hz
230 volts, 50 Hz
10.81"
10.81"
10.81"
10.81"
10.81"
1 ea.
2 ea. 25 watt
2 ea. 25 watt
2 ea. 25 watt
2 ea. 25 watt
None
None
2
None
2
None
None
1
None
None
365/166
375/170
375/170
370/168
380/172
5 Feet




6080000
6080200
6080300
6071300**
6071400**
1/2 HP, Std.
1/2 HP, EP
1/2 HP, Std.
1/2 HP, Std.
1/2 HP, Std.
115 volts, 60 Hz
115 volts, 60 Hz
115 volts, 60 Hz
230 volts, 50 Hz
230 volts, 50 Hz
12.81"
12.81"
12.81"
12.81"
12.81"
1 ea.
2 ea. 32 watt
2 ea. 32 watt
2 ea. 32 watt
2 ea. 32 watt
None
None
2
None
2
None
None
1
None
None
450/204
460/209
460/209
455/206
455/211
6 Feet




7280000
7280200
7280300
7271300**
7271400**
1/2 HP, Std.
1/2 HP, EP
1/2 HP, Std.
1/2 HP, Std.
1/2 HP, Std.
115 volts, 60 Hz
115 volts, 60 Hz
115 volts, 60 Hz
230 volts, 50 Hz
230 volts, 50 Hz
12.81"
12.81"
12.81"
12.81"
12.81"
1 ea.
2 ea. 32 watt
2 ea. 32 watt
2 ea. 32 watt
2 ea. 32 watt
None
None
2
None
2
None
None
1
None
None
525/238
535/243
535/243
530/240
540/245
* Bulb not included     ** International electrical configuration     EP=explosion-proof

Dimensional Data

4',5' and 6' Laboratory Hoods with built-in blower

4', 5' and 6' Hoods

A
B
C
4' Hood
5' Hood
6' Hood
48"
60"
72"
38.25"
50.25"
62.25"
10.81" ID
12.81" ID
12.81" ID
Fume Hood - Top View
Fume Hood - Side View
Fume Hood - Front View
